BMW 5 SERIES SEDAN: ENGINES & TECHNICAL DATA
Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 5 Series Sedan.
THE 5BMW 5 SERIES SEDAN: ENGINES & TECHNICAL DATA
Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 5 Series Sedan.

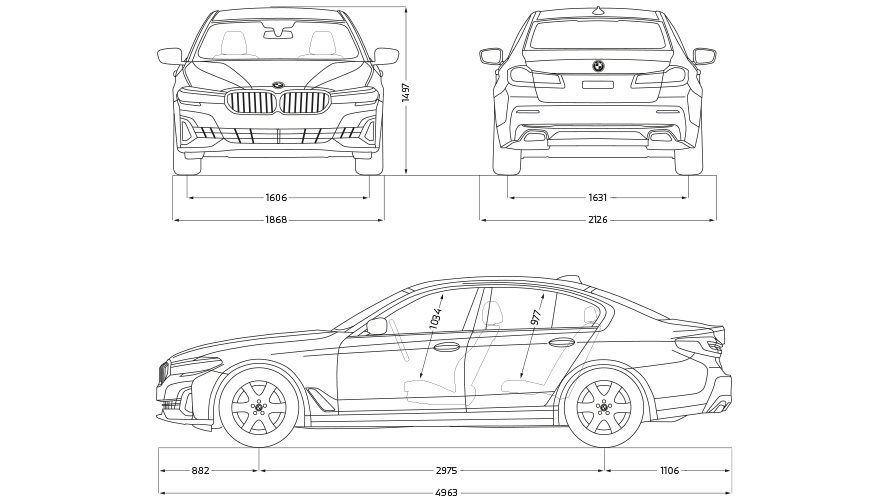

BMW 5 SERIES SEDAN: TECHNICAL DATA.
Select model
- BMW 520i Sedan
- BMW 530i Sedan
- BMW 530i xDrive Sedan
- BMW 540i Sedan
- BMW 540i xDrive Sedan
- BMW M550i xDrive Sedan
- BMW 518d Sedan
- BMW 520d Sedan
- BMW 520d xDrive Sedan
- BMW 530d Sedan
- BMW 530d xDrive Sedan
- BMW 540d xDrive Sedan
- BMW 520e Sedan
- BMW 530e Sedan
- BMW 530e xDrive Sedan
- BMW 545e xDrive Sedan
No search result found. Please try another input
| Unladen weight EU in kg | 1.685 |
|---|---|
| Max. permissible weight in kg | 2.285 |
| Permitted load in kg | 675 |
| Permitted axle load front/rear in kg | 1,080/1,280 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 120-135 (163-184)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 290/1,350-4,250 - 1,350-3,800 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 226-235 |
|---|---|
| Acceleration 0–100 km/h in s | 8.3-7.9 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 7.1-6.1 |
|---|---|
| CO2 combined emissions in g/km | 161-140 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,700 |
|---|---|
| Max. permissible weight in kg | 2,305 |
| Permitted load in kg | 680 |
| Permitted axle load front/rear in kg | 1,090/1,300 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 185 (252)/5,200-6,500 |
| Engine torque (Nm) at 1/min | 350/1,450-4,800 |
| Compression ratio : 1 | 10.2 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 6.4 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 7.1-6.3 |
|---|---|
| CO2 combined emissions in g/km | 163-142 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,755 |
|---|---|
| Max. permissible weight in kg | 2,360 |
| Permitted load in kg | 680 |
| Permitted axle load front/rear in kg | 1,140/1,310 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 185 (252)/5,200-6,500 |
| Engine torque (Nm) at 1/min | 350/1,450-4,800 |
| Compression ratio : 1 | 10.2 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 6.3 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 7.5-6.6 |
|---|---|
| CO2 combined emissions in g/km | 171-151 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,760 |
|---|---|
| Max. permissible weight in kg | 2,395 |
| Permitted load in kg | 710 |
| Permitted axle load front/rear in kg | 1,155/1,320 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 250 (340)/5,500-6,500 |
| Engine torque (Nm) at 1/min | 450/1,600-4,800 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.2 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 8.0-7.0 |
|---|---|
| CO2 combined emissions in g/km | 181-160 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,820 |
|---|---|
| Max. permissible weight in kg | 2,455 |
| Permitted load in kg | 710 |
| Permitted axle load front/rear in kg | 1,200/1,330 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 245 (333)/5,500-6,250 |
| Engine torque (Nm) at 1/min | 450/1,600-4,800 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 4.9 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 8.4-7.5 |
|---|---|
| CO2 combined emissions in g/km | 190-170 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,990 |
|---|---|
| Max. permissible weight in kg | 2,560 |
| Permitted load in kg | 645 |
| Permitted axle load front/rear in kg | 1,260/1,365 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 8/4 |
|---|---|
| Capacity in ccm | 4,395 |
| Stroke/bore in mm | 88.3/89.0 |
| Engine power in kW (hp) at 1/min | 390 (530)/5,500-6,000 |
| Engine torque (Nm) at 1/min | 750/1,800-4,600 |
| Compression ratio : 1 | 10.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 3.8 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 11.0-10.3 |
|---|---|
| CO2 combined emissions in g/km | 251-235 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 68 |
| Tyre dimensions front | 245/40 R19 98 Y XL |
|---|---|
| Tyre dimensions rear | 275/35 R19 100 Y XL |
| Wheel dimensions and material front | 8 J x 19 inches, light-alloy |
| Wheel dimensions and material rear | 9 J x 19 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,745 |
|---|---|
| Max. permissible weight in kg | 2,340 |
| Permitted load in kg | 670 |
| Permitted axle load front/rear in kg | 1,090/1,310 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,995 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 100-110 (136-150)/4,000 |
| Engine torque (Nm) at 1/min | 350/1,750-2,500 - 1,750-2,250 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 212-220 |
|---|---|
| Acceleration 0–100 km/h in s | 9.4-8.8 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 5.5-4.7 |
|---|---|
| CO2 combined emissions in g/km | 144-124 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 101 Y XL |
|---|---|
| Tyre dimensions rear | 225/55 R17 101 Y XL |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,750 |
|---|---|
| Max. permissible weight in kg | 2,345 |
| Permitted load in kg | 670 |
| Permitted axle load front/rear in kg | 1,100/1,320 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,995 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 120-140 (163-190)/4,000 |
| Engine torque (Nm) at 1/min | 400/1,750-2,500 - 1,750-2,250 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 223-235 |
|---|---|
| Acceleration 0–100 km/h in s | 8.2-7.2 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 5.5-4.7 |
|---|---|
| CO2 combined emissions in g/km | 145-124 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,810 |
|---|---|
| Max. permissible weight in kg | 2,405 |
| Permitted load in kg | 670 |
| Permitted axle load front/rear in kg | 1,150/1,330 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,995 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 140 (190)/4,000 |
| Engine torque (Nm) at 1/min | 400/1,750-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 232 |
|---|---|
| Acceleration 0–100 km/h in s | 7.2 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 5.8-5.0 |
|---|---|
| CO2 combined emissions in g/km | 152-130 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,835 |
|---|---|
| Max. permissible weight in kg | 2,355 |
| Permitted load in kg | 680 |
| Permitted axle load front/rear in kg | 1,200/1,350 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,993 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 183-210 (249-286)/3,250-4,400 - 4,000 |
| Engine torque (Nm) at 1/min | 650/1,500-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.8-5.6 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 5.8-5.1 |
|---|---|
| CO2 combined emissions in g/km | 152-133 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,895 |
|---|---|
| Max. permissible weight in kg | 2,505 |
| Permitted load in kg | 685 |
| Permitted axle load front/rear in kg | 1,250/1,360 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,993 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 183-210 (249-286)/3,250-4,400 - 4,000 |
| Engine torque (Nm) at 1/min | 650/1,500-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 5.6-5.4 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 6.1-5.4 |
|---|---|
| CO2 combined emissions in g/km | 161-140 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,925 |
|---|---|
| Max. permissible weight in kg | 2,525 |
| Permitted load in kg | 675 |
| Permitted axle load front/rear in kg | 1,270/1,360 |
| Luggage capacity min. (seats up or roof down) in l | 530 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,993 |
| Stroke/bore in mm | 90.0/84.0 |
| Engine power in kW (hp) at 1/min | 250 (340)/4,400 |
| Engine torque (Nm) at 1/min | 700/1,750-2,250 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 4.6 |
| Electrical engine top speed in km/h | - |
| Combined in l/100 km | 6.4-5.5 |
|---|---|
| CO2 combined emissions in g/km | 167-145 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 66 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | - |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | - |
| Electric engine power kW (hp) at 1/min | - |
|---|---|
| Electric Engine torque (Nm) at 1/min | - |
| Combined power kW (hp) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,910 |
|---|---|
| Max. permissible weight in kg | 2,505 |
| Permitted load in kg | 670 |
| Permitted axle load front/rear in kg | 1,120/1,450 |
| Luggage capacity min. (seats up or roof down) in l | 410 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,700 |
| Trailer load 12% (braked) in kg | 1,700 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 120 (163)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 300/1,350-3,700 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 225 |
|---|---|
| Acceleration 0–100 km/h in s | 7.9 |
| Electrical engine top speed in km/h | 140 |
| Combined in l/100 km | 1.8-1.3 |
|---|---|
| CO2 combined emissions in g/km | 42-30 |
| Electricity consumption, combined in kWh/100km | 18.2-16.3 |
| Tank capacity, approx. in l | 46 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | 53-61 |
|---|---|
| Growth capacity of lithium-ion battery in kWh | 12.0 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | 2.6 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | 3.6 |
| Electric engine power kW (hp) at 1/min | 80 (109)/3,140 |
|---|---|
| Electric Engine torque (Nm) at 1/min | 265/100-2,500 |
| Combined power kW (hp) | 150 (204) |
|---|---|
| Combined torque Nm | 350 |
| Unladen weight EU in kg | 1,910 |
|---|---|
| Max. permissible weight in kg | 2,505 |
| Permitted load in kg | 670 |
| Permitted axle load front/rear in kg | 1,120/1,450 |
| Luggage capacity min. (seats up or roof down) in l | 410 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,700 |
| Trailer load 12% (braked) in kg | 1,700 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 135 (184)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 300/1,350-4,000 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 235 |
|---|---|
| Acceleration 0–100 km/h in s | 5.9 |
| Electrical engine top speed in km/h | 140 |
| Combined in l/100 km | 1.8-1.3 |
|---|---|
| CO2 combined emissions in g/km | 42-30 |
| Electricity consumption, combined in kWh/100km | 18.3-16.2 |
| Tank capacity, approx. in l | 46 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | 52-61 |
|---|---|
| Growth capacity of lithium-ion battery in kWh | 12.0 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | 2.6 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | 3.4 |
| Electric engine power kW (hp) at 1/min | 80 (109)/3,140 |
|---|---|
| Electric Engine torque (Nm) at 1/min | 265/100-2,500 |
| Combined power kW (hp) | 215 (292) |
|---|---|
| Combined torque Nm | 420 |
| Unladen weight EU in kg | 1,970 |
|---|---|
| Max. permissible weight in kg | 2,560 |
| Permitted load in kg | 665 |
| Permitted axle load front/rear in kg | 1,170/1,455 |
| Luggage capacity min. (seats up or roof down) in l | 410 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 135 (184)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 300/1,350-4,000 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 230 |
|---|---|
| Acceleration 0–100 km/h in s | 5.9 |
| Electrical engine top speed in km/h | 140 |
| Combined in l/100 km | 2.2-1.6 |
|---|---|
| CO2 combined emissions in g/km | 49-35 |
| Electricity consumption, combined in kWh/100km | 19.4-17.4 |
| Tank capacity, approx. in l | 46 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | 47-55 |
|---|---|
| Growth capacity of lithium-ion battery in kWh | 12.0 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | 2.6 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | 3.4 |
| Electric engine power kW (hp) at 1/min | 80 (109)/3,140 |
|---|---|
| Electric Engine torque (Nm) at 1/min | 265/100-2,500 |
| Combined power kW (hp) | 215 (292) |
|---|---|
| Combined torque Nm | 420 |
| Unladen weight EU in kg | 2,020 |
|---|---|
| Max. permissible weight in kg | 2,605 |
| Permitted load in kg | 660 |
| Permitted axle load front/rear in kg | 1,205/1,455 |
| Luggage capacity min. (seats up or roof down) in l | 410 |
| Luggage capacity max. (seats down or roof up) in l | - |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 2,000 |
| Trailer load 12% (braked) in kg | 2,000 |
| Cylinders/valves | 6/4 |
|---|---|
| Capacity in ccm | 2,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 210 (286)/5,000-6,000 |
| Engine torque (Nm) at 1/min | 450/1,600-3,500 |
| Compression ratio : 1 | 11.0 |
| Top speed in km/h | 250 |
|---|---|
| Acceleration 0–100 km/h in s | 4.6 |
| Electrical engine top speed in km/h | 140 |
| Combined in l/100 km | 2.2-1.6 |
|---|---|
| CO2 combined emissions in g/km | 51-37 |
| Electricity consumption, combined in kWh/100km | 19.2-17.2 |
| Tank capacity, approx. in l | 46 |
| Tyre dimensions front | 225/55 R17 97 Y |
|---|---|
| Tyre dimensions rear | 225/55 R17 97 Y |
| Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
| Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
| Electric range in km | 47-57 |
|---|---|
| Growth capacity of lithium-ion battery in kWh | 12.0 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h | 2.6 |
| Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h | 3.6 |
| Electric engine power kW (hp) at 1/min | 80 (109)/3,140 |
|---|---|
| Electric Engine torque (Nm) at 1/min | 265/100-2,500 |
| Combined power kW (hp) | 290 (394) |
|---|---|
| Combined torque Nm | 600 |
Including of /content/bmw/marketB4R1/master/en_BQ/publicPools/teaser-pool/medium-teasers/tyre-energy-lables/jcr:content/par-4col/wideteaser_67 failed
Fuel consumption and CO2 emissions.
- Disclaimer reference invalid
