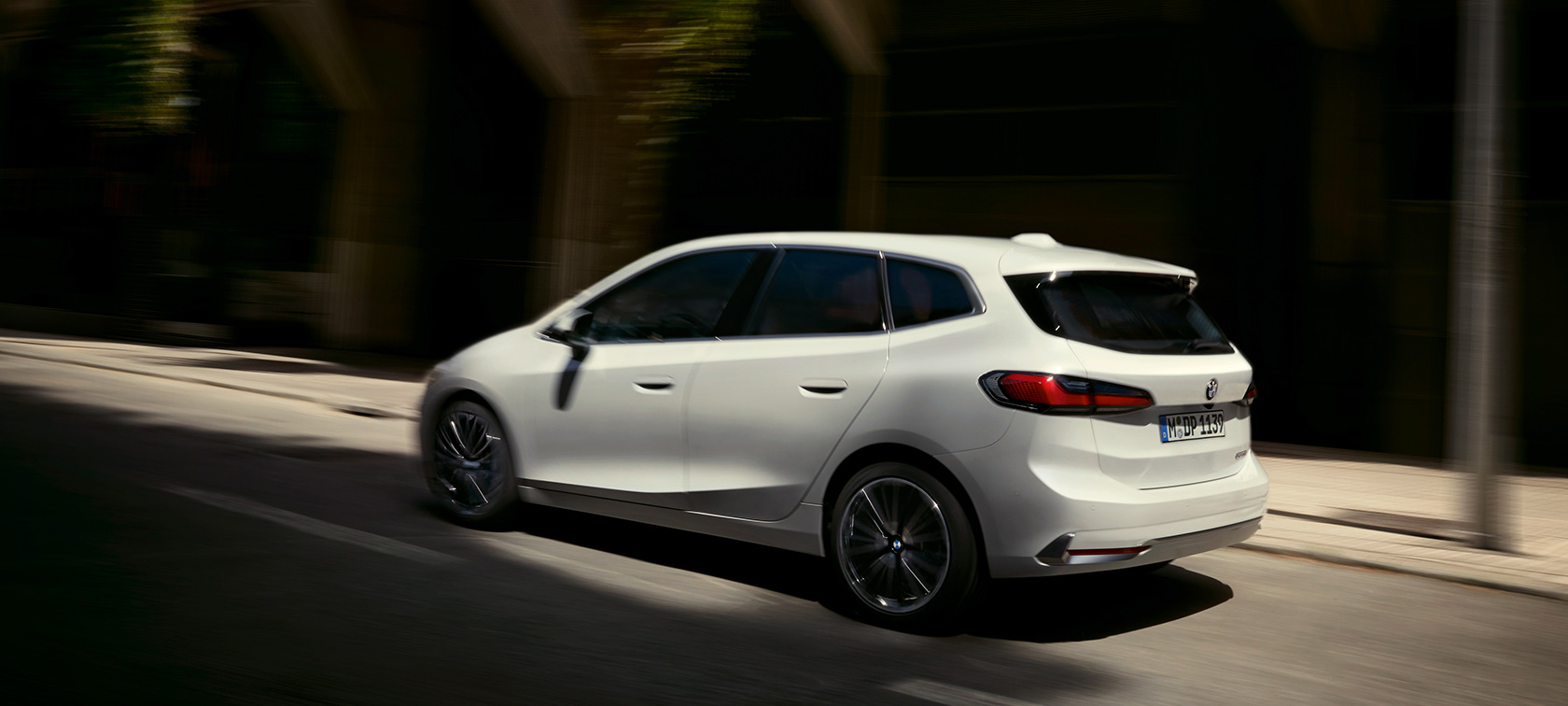

THE BMW 2 SERIES ACTIVE TOURER: ENGINES & TECHNICAL DATA
THE 2THE BMW 2 SERIES ACTIVE TOURER: ENGINES & TECHNICAL DATA
The key facts and figures on the new BMW 2 Series Active Tourer at a glance: engines, fuel and power consumption, CO2 emissions, electric range and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.
TECHNICAL DATA OF THE BMW 2 SERIES ACTIVE TOURER.
Select model
- BMW 218i Active Tourer
- BMW 220i Active Tourer
- BMW 223i Active Tourer
- BMW 223i xDrive Active Tourer
- BMW 218d Active Tourer
- BMW 225e xDrive Active Tourer
- BMW 230e xDrive Active Tourer
No search result found. Please try another input
| Unladen weight EU in kg | 1,545 |
|---|---|
| Max. permissible weight in kg | 2,015 |
| Permitted load in kg | 545 |
| Permitted axle load front/rear in kg | 1,070/1,010 |
| Luggage capacity in l | 470-1,455 |
| Luggage volume Cargo behind 2. SR in l | 565 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,300 |
| Trailer load 12% (braked) in kg | 1,300 |
| Cylinders/valves | 3/4 |
|---|---|
| Capacity in ccm | 1,499 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 100 (136)/4,400-6,500 |
| Engine torque (Nm) at 1/min | 230/1,500-4,000 |
| Compression ratio : 1 | 11.1 |
| Top speed in km/h | 214 |
|---|---|
| Acceleration 0–100 km/h in s | 9.0 |
| Combined in l/100 km | 6.8-6.2 |
|---|---|
| CO2 combined emissions in g/km | 154-140 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 45 |
| Tyre dimensions front | 205/65 R16 95 W |
|---|---|
| Tyre dimensions rear | 205/65 R16 95 W |
| Wheel dimensions and material front | 8 J x 19 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 19 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| AC Charging: charging time 0–100 % in h / max. vehicle charging performance in kW | - |
| Electric engine power kW (HP) | - |
|---|---|
| Electric Engine torque (Nm) | - |
| Combined power kW (HP) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,595 |
|---|---|
| Max. permissible weight in kg | 2,075 |
| Permitted load in kg | 555 |
| Permitted axle load front/rear in kg | 1,095/1,050 |
| Luggage capacity in l | 415-1,405 |
| Luggage volume Cargo behind 2. SR in l | 500 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,300 |
| Trailer load 12% (braked) in kg | 1,300 |
| Cylinders/valves | 3/4 |
|---|---|
| Capacity in ccm | 1,499 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 115 (156)/4,700-6,500 |
| Engine torque (Nm) at 1/min | 240/1,500-4,400 |
| Compression ratio : 1 | 11.1 |
| Top speed in km/h | 221 |
|---|---|
| Acceleration 0–100 km/h in s | 8.1 |
| Combined in l/100 km | 6.5-5.9 |
|---|---|
| CO2 combined emissions in g/km | 148-133 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 45 |
| Tyre dimensions front | 205/65 R16 95 W |
|---|---|
| Tyre dimensions rear | 205/65 R16 95 W |
| Wheel dimensions and material front | 8 J x 19 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 19 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| AC Charging: charging time 0–100 % in h / max. vehicle charging performance in kW | - |
| Electric engine power kW (HP) | - |
|---|---|
| Electric Engine torque (Nm) | - |
| Combined power kW (HP) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,620 |
|---|---|
| Max. permissible weight in kg | 2,105 |
| Permitted load in kg | 560 |
| Permitted axle load front/rear in kg | 1,120/1,050 |
| Luggage capacity in l | 415-1,405 |
| Luggage volume Cargo behind 2. SR in l | 500 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,500 |
| Trailer load 12% (braked) in kg | 1,500 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 150 (204)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 320/1,500-4,000 |
| Compression ratio : 1 | 11.1 |
| Top speed in km/h | 241 |
|---|---|
| Acceleration 0–100 km/h in s | 7.0 |
| Combined in l/100 km | 6.6-6.0 |
|---|---|
| CO2 combined emissions in g/km | 149-137 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 45 |
| Tyre dimensions front | 205/60 R17 97 W XL |
|---|---|
| Tyre dimensions rear | 205/60 R17 97 W XL |
| Wheel dimensions and material front | 8 J x 19 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 19 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| AC Charging: charging time 0–100 % in h / max. vehicle charging performance in kW | - |
| Electric engine power kW (HP) | - |
|---|---|
| Electric Engine torque (Nm) | - |
| Combined power kW (HP) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,690 |
|---|---|
| Max. permissible weight in kg | 2,170 |
| Permitted load in kg | n/a |
| Permitted axle load front/rear in kg | n/a |
| Luggage capacity in l | 415-1,405 |
| Luggage volume Cargo behind 2. SR in l | 500 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,500 |
| Trailer load 12% (braked) in kg | 1,500 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,998 |
| Stroke/bore in mm | 94.6/82.0 |
| Engine power in kW (hp) at 1/min | 150 (204)/5,000-6,500 |
| Engine torque (Nm) at 1/min | 320/1,500-4,000 |
| Compression ratio : 1 | 11.1 |
| Top speed in km/h | 238 |
|---|---|
| Acceleration 0–100 km/h in s | 6,9 |
| Combined in l/100 km | 7.3-6.6 |
|---|---|
| CO2 combined emissions in g/km | 165-150 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 45 |
| Tyre dimensions front | 205/60 R17 97 W XL |
|---|---|
| Tyre dimensions rear | 205/60 R17 97 W XL |
| Wheel dimensions and material front | 8 J x 19 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 19 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| AC Charging: charging time 0–100 % in h / max. vehicle charging performance in kW | - |
| Electric engine power kW (HP) | - |
|---|---|
| Electric Engine torque (Nm) | - |
| Combined power kW (HP) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,620 |
|---|---|
| Max. permissible weight in kg | 2,085 |
| Permitted load in kg | 540 |
| Permitted axle load front/rear in kg | 1,115/1,030 |
| Luggage capacity in l | 470-1,455 |
| Luggage volume Cargo behind 2. SR in l | 565 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | 1,400 |
| Trailer load 12% (braked) in kg | 1,400 |
| Cylinders/valves | 4/4 |
|---|---|
| Capacity in ccm | 1,995 |
| Stroke/bore in mm | 90,0/84,0 |
| Engine power in kW (hp) at 1/min | 110 (150)/3,750-4,000 |
| Engine torque (Nm) at 1/min | 360/1,500-2,500 |
| Compression ratio : 1 | 16.5 |
| Top speed in km/h | 220 |
|---|---|
| Acceleration 0–100 km/h in s | 8.8 |
| Combined in l/100 km | 5.3-4.8 |
|---|---|
| CO2 combined emissions in g/km | 138-125 |
| Electricity consumption, combined in kWh/100km | - |
| Tank capacity, approx. in l | 45 |
| Tyre dimensions front | 205/65 R16 95 W |
|---|---|
| Tyre dimensions rear | 205/65 R16 95 W |
| Wheel dimensions and material front | 8 J x 19 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 19 inches, light-alloy |
| Electric range in km | - |
|---|---|
| Growth capacity of lithium-ion battery in kWh | - |
| AC Charging: charging time 0–100 % in h / max. vehicle charging performance in kW | - |
| Electric engine power kW (HP) | - |
|---|---|
| Electric Engine torque (Nm) | - |
| Combined power kW (HP) | - |
|---|---|
| Combined torque Nm | - |
| Unladen weight EU in kg | 1,920 |
|---|---|
| Max. permissible weight in kg | 2,415 |
| Permitted load in kg | n/a |
| Permitted axle load front/rear in kg | n/a |
| Luggage capacity in l | 406-1,370 |
| Luggage volume Cargo behind 2. SR in l | 500 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | n/a |
| Trailer load 12% (braked) in kg | n/a |
| Cylinders/valves | 3/4 |
|---|---|
| Capacity in ccm | 1,499 |
| Stroke/bore in mm | n/a |
| Engine power in kW (hp) at 1/min | 100 (136)/4,400 |
| Engine torque (Nm) at 1/min | 230/1,500-4,000 |
| Compression ratio : 1 | n/a |
| Top speed in km/h | 195 |
|---|---|
| Acceleration 0–100 km/h in s | 7.0 |
| Combined in l/100 km | 1.4-1.1 |
|---|---|
| CO2 combined emissions in g/km | 30-22 |
| Electricity consumption, combined in kWh/100km | 20.0-17.9 |
| Tank capacity, approx. in l | 47 |
| Tyre dimensions front | 205/65 R16 95 W |
|---|---|
| Tyre dimensions rear | 205/65 R16 95 W |
| Wheel dimensions and material front | 8 J x 19 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 19 inches, light-alloy |
| Electric range in km | 69-80 |
|---|---|
| Growth capacity of lithium-ion battery in kWh | 14.9 |
| AC Charging: charging time 0–100 % in h / max. vehicle charging performance in kW | under 02:30/7.4 |
| Electric engine power kW (HP) | 80 (109) |
|---|---|
| Electric Engine torque (Nm) | 247 |
| Combined power kW (HP) | 180 (245) |
|---|---|
| Combined torque Nm | 477 |
| Unladen weight EU in kg | 1,935 |
|---|---|
| Max. permissible weight in kg | 2,430 |
| Permitted load in kg | n/a |
| Permitted axle load front/rear in kg | n/a |
| Luggage capacity in l | 406-1,370 |
| Luggage volume Cargo behind 2. SR in l | 500 |
| Trailer load (unbraked) in kg | 750 |
| Trailer load 8% (braked) in kg | n/a |
| Trailer load 12% (braked) in kg | n/a |
| Cylinders/valves | 3/4 |
|---|---|
| Capacity in ccm | 1,499 |
| Stroke/bore in mm | n/a |
| Engine power in kW (hp) at 1/min | 110 (150)/5,000 |
| Engine torque (Nm) at 1/min | 230/1,500-4,400 |
| Compression ratio : 1 | n/a |
| Top speed in km/h | 205 |
|---|---|
| Acceleration 0–100 km/h in s | 5.7 |
| Combined in l/100 km | 1.4-1.1 |
|---|---|
| CO2 combined emissions in g/km | 30-22 |
| Electricity consumption, combined in kWh/100km | 20.0-17.9 |
| Tank capacity, approx. in l | 47 |
| Tyre dimensions front | 205/60 R17 97 W XL |
|---|---|
| Tyre dimensions rear | 205/60 R17 97 W XL |
| Wheel dimensions and material front | 8 J x 19 inches, light-alloy |
| Wheel dimensions and material rear | 8 J x 19 inches, light-alloy |
| Electric range in km | 69-80 |
|---|---|
| Growth capacity of lithium-ion battery in kWh | 14.9 |
| AC Charging: charging time 0–100 % in h / max. vehicle charging performance in kW | under 02:30/7.4 |
| Electric engine power kW (HP) | 130 (177) |
|---|---|
| Electric Engine torque (Nm) | 247 |
| Combined power kW (HP) | 240 (326) |
|---|---|
| Combined torque Nm | 477 |
Including of /content/bmw/marketB4R1/master/en_BQ/publicPools/teaser-pool/medium-teasers/tyre-energy-lables/jcr:content/par-4col/wideteaser_67 failed
Fuel consumption, power consumption and CO2 emissions of the BMW 2 Series Active Tourer.
BMW 223i Active Tourer*:
Fuel consumption in l/100 km (combined): x.x–x.x
CO2 emissions in g/km (combined): xxx–xxx
BMW 230e xDrive Active Tourer*:
Fuel consumption in l/100 km (combined): x.x–x.x
CO2 emissions in g/km (combined): xxx–xxx
Power consumption combined in kWh/100 km:
* The figures are preliminary.
BMW 225e xDrive and BMW 230e xDrive Active Tourer are expected to be available from 7/2022.
At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
Official data on fuel consumption, CO2 emissions, power consumption and electric range were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp
For more information on the official fuel consumption and official specific CO2 emissions of new passenger cars, see the ‘Guide to Fuel Consumption, CO2 Emissions, and Electricity Consumption of New Passenger Cars’, which is available free of charge at all sales outlets, from Deutsche AutomobilTreuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern- Scharnhausen, and at www.dat.de/co2
Fuel consumption, power consumption and CO2 emissions of the BMW 2 Series Active Tourer.
BMW 223i Active Tourer:
Fuel consumption in l/100 km (combined): 6.6–6.0
CO2 emissions in g/km (combined): 149–137
BMW 230e xDrive Active Tourer*:
Fuel consumption in l/100 km (combined): 1.4–1.1
CO2 emissions in g/km (combined): 30–22
Power consumption combined in kWh/100 km: 20.0–17.9* The figures are preliminary.
Official data on fuel consumption, CO2 emissions, power consumption and electric range were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp
For more information on the official fuel consumption and official specific CO2 emissions of new passenger cars, see the ‘Guide to Fuel Consumption, CO2 Emissions, and Electricity Consumption of New Passenger Cars’, which is available free of charge at all sales outlets, from Deutsche AutomobilTreuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern- Scharnhausen, and at www.dat.de/co2
