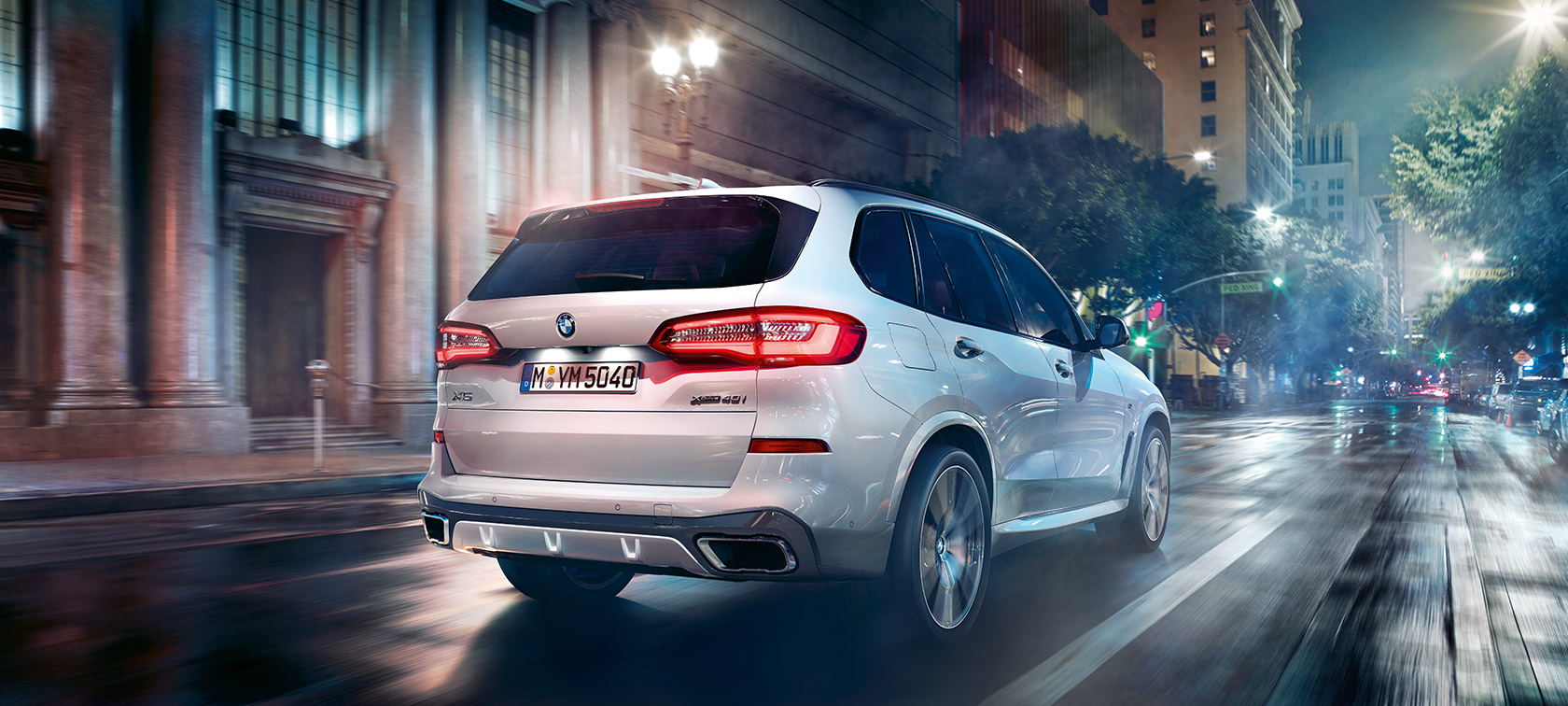

BMW X5 G05 2018 Mineral White metallic three-quarter rear view driving

THE X5

BMW X5: ENGINES & TECHNICAL DATA

THE X5BMW X5: ENGINES & TECHNICAL DATA

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW X5.

Read more

BMW X5: TECHNICAL DATA.

Weight
Unladen weight EU in kg
2.135
Max. permissible weight in kg
2,800
Permitted load in kg
740
Permitted axle load front/rear in kg
1,280/1,580
Luggage capacity min. (seats up or roof down) in l
650
Luggage capacity max. (seats down or roof up) in l
1,870
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
-
Trailer load 12% (braked) in kg
2,500
Engine
Cylinders/valves
6/4
Capacity in ccm
2,998
Stroke/bore in mm
94,6/82,0
Engine power in kW (HP) at 1/min
250 (340)/5,500-6,500
Engine torque (Nm) at 1/min
450/1,500-5,200
Compression ratio : 1
11.0
Performance
Top speed in km/h
243
Acceleration 0–100 km/h in s
5.5
Top speed fully electric in km/h
-
Fuel consumption
Urban in l/100 km
10.9
Extra-urban in l/100 km
8.3-8.2
Combined in l/100 km
9.2
CO2 combined emissions in g/km
211-210
Electricity consumption combined in kWh/100km
-
Tank capacity, approx. in l
83
Wheels
Tyre dimensions front
255/55 R18 109W XL
Tyre dimensions rear
255/55 R18 109W XL
Wheel dimensions and material front
8.5 J x 18 inches, light-alloy
Wheel dimensions and material rear
8.5 J x 18 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium–ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (PS) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (PS)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
2.145
Max. permissible weight in kg
2,820
Permitted load in kg
750
Permitted axle load front/rear in kg
1,285/1,610
Luggage capacity min. (seats up or roof down) in l
650
Luggage capacity max. (seats down or roof up) in l
1,870
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
-
Trailer load 12% (braked) in kg
1,700
Engine
Cylinders/valves
4/4
Capacity in ccm
1.995
Stroke/bore in mm
90.0/84.0
Engine power in kW (HP) at 1/min
170 (231)/4,400-4,400
Engine torque (Nm) at 1/min
450/1,500-3,000
Compression ratio : 1
16.5
Performance
Top speed in km/h
222
Acceleration 0–100 km/h in s
7.5
Top speed fully electric in km/h
-
Fuel consumption
Urban in l/100 km
7.3-6.7
Extra-urban in l/100 km
6.8-6.4
Combined in l/100 km
6.9-6.7
CO2 combined emissions in g/km
182-175
Electricity consumption combined in kWh/100km
-
Tank capacity, approx. in l
80
Wheels
Tyre dimensions front
265/50 R19 110W XL
Tyre dimensions rear
265/50 R19 110W XL
Wheel dimensions and material front
9 J x 19 inches, light-alloy
Wheel dimensions and material rear
9 J x 19 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium–ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (PS) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (PS)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
2.185
Max. permissible weight in kg
2,860
Permitted load in kg
750
Permitted axle load front/rear in kg
1,320/1,615
Luggage capacity min. (seats up or roof down) in l
650
Luggage capacity max. (seats down or roof up) in l
1,870
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
-
Trailer load 12% (braked) in kg
1,700
Engine
Cylinders/valves
6/4
Capacity in ccm
2.993
Stroke/bore in mm
90.0/84.0
Engine power in kW (HP) at 1/min
195 (265)/4,000-4,000
Engine torque (Nm) at 1/min
620/2.000-2.500
Compression ratio : 1
16.5
Performance
Top speed in km/h
230
Acceleration 0–100 km/h in s
6.5
Top speed fully electric in km/h
-
Fuel consumption
Urban in l/100 km
8.0-7.7
Extra-urban in l/100 km
7.1-6.7
Combined in l/100 km
7.3-7.0
CO2 combined emissions in g/km
194-185
Electricity consumption combined in kWh/100km
-
Tank capacity, approx. in l
80
Wheels
Tyre dimensions front
275/35 R22 104Y XL
Tyre dimensions rear
315/30 R22 107Y XL
Wheel dimensions and material front
9.5 J x 22 inches, light-alloy
Wheel dimensions and material rear
10.5 J x 22 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium–ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (PS) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (PS)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
2,510
Max. permissible weight in kg
3,150
Permitted load in kg
715
Permitted axle load front/rear in kg
1,390/1,810
Luggage capacity min. (seats up or roof down) in l
500
Luggage capacity max. (seats down or roof up) in l
1,720
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
-
Trailer load 12% (braked) in kg
2,700
Engine
Cylinders/valves
6/4
Capacity in ccm
2.998
Stroke/bore in mm
94.6/82.0
Engine power in kW (HP) at 1/min
210 (286)/5,000-6,000
Engine torque (Nm) at 1/min
450/1,500-3,500
Compression ratio : 1
11.0
Performance
Top speed in km/h
235
Acceleration 0–100 km/h in s
5.6
Top speed fully electric in km/h
135
Fuel consumption
Urban in l/100 km
-
Extra-urban in l/100 km
-
Combined in l/100 km
2.5
CO2 combined emissions in g/km
56
Electricity consumption combined in kWh/100km
25.7
Tank capacity, approx. in l
69
Wheels
Tyre dimensions front
265/50 R19 110W XL
Tyre dimensions rear
265/50 R19 110W XL
Wheel dimensions and material front
9 J x 19 inches, light-alloy
Wheel dimensions and material rear
9 J x 19 inches, light-alloy
Range and charging
Electric range in km
77
Growth capacity of lithium–ion battery in kWh
24.0
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
5.0
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
6.8
Electric engine
Electric engine power kW (PS) at 1/min
83 (113)/3,170
Electric Engine torque (Nm) at 1/min
265/0-3,170
Combined system power
Combined power kW (PS)
290 (394)
Combined torque Nm
600

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW X5 xDrive40i:
Fuel consumption in l/100 km (combined): 9.1–8.5
CO2 emissions in g/km (combined): 207–193

The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.


Read more

Fuel consumption and CO2 emissions.

  • BMW X5 xDrive40i:
    Fuel consumption in l/100 km (combined): 9.2
    CO2 emissions in g/km (combined): 211–210

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.
